Box Culvert

What is the use of box culvert?

Precast box culvert has long been recognized as a way to speed up the construction of DOT, civil, and commercial projects. Recently, this advantage has been enhanced with the introduction of the Complete Precast Box Culvert System by Permatile Concrete Products Company.

How is a box culvert constructed?

Permatile manufactures precast box culvert in single or monolithic multiple cell sections. With the advent of new technology, double and triple box culverts can now be manufactured in one monolithic unit with laying lengths up to eight feet, thereby eliminating the cost and time-intensive installation of multiple lines of single-cell boxes. Permatile’s precast box culverts may also be skewed in most cases to meet the project requirements.

Precast Concrete
Bristol Motorsports Tunnel

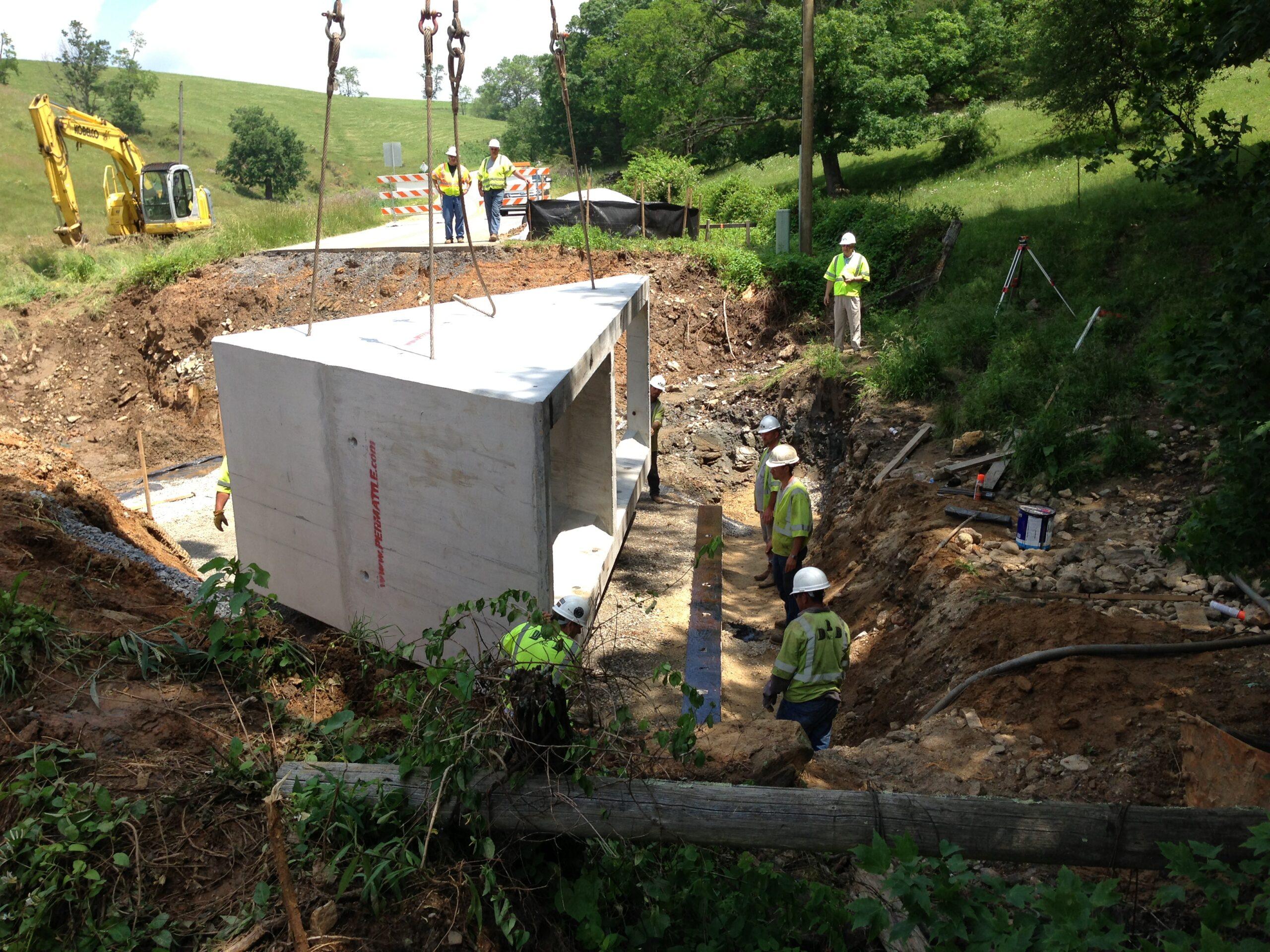

In addition to precast barrel sections, this system also provides precast components for the construction of scour walls, wing walls, and headwalls allowing complete culvert systems to be built in the controlled environment of our factory, transported to the job site, and installed on prepared bedding in a fraction of the time required for conventional cast-in-place construction.

Designs meet or exceed the following:

  • ATSM C-789, C-850
  • AASHTO M-259, M-273
  • AREA Cooper E-80
  • DOT Specifications
  • HS20, HS25, HL-93 and Alt. Military Live Loads

See the Roanoke River Greenway Bridge project for this product in use.

Have a project that requires precast box culverts? Request more information on any of our products.
